Products Description
| Product Name | Tunnel type multi-span agricultural film greenhouse |
| Span | 6m/8m/9.6m/10m/12m/Customized |
| Length | 20m/50m/100m/Customized |
| Shoulder Height | 3m-5m / Customized |
| Roof Height | 4.8m-6.8m / Customized |
| Wind Load | 0.5 kn/㎡ / Customized |
| Snow Load | 0.5 kn/㎡ / Customized |
| Max Rain Quantity | 140mm/h |
Greenhouse system description

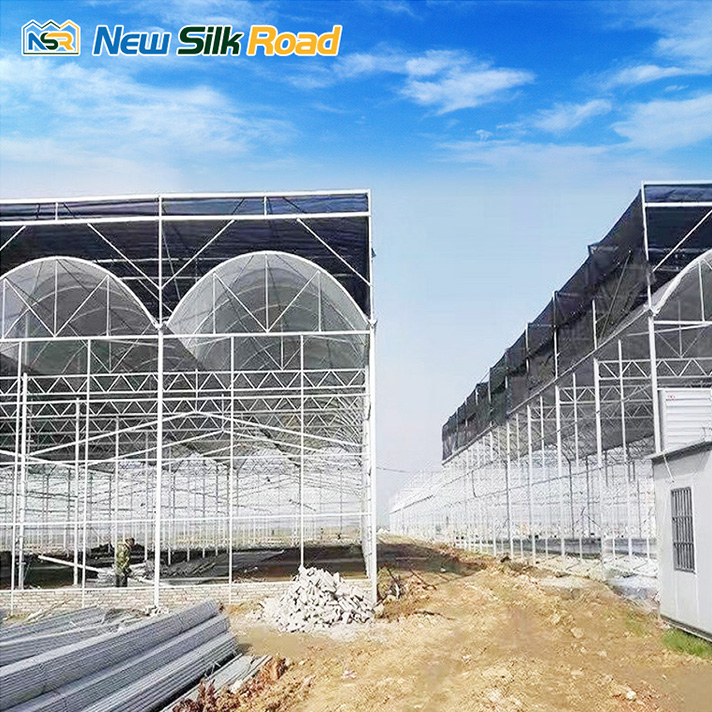

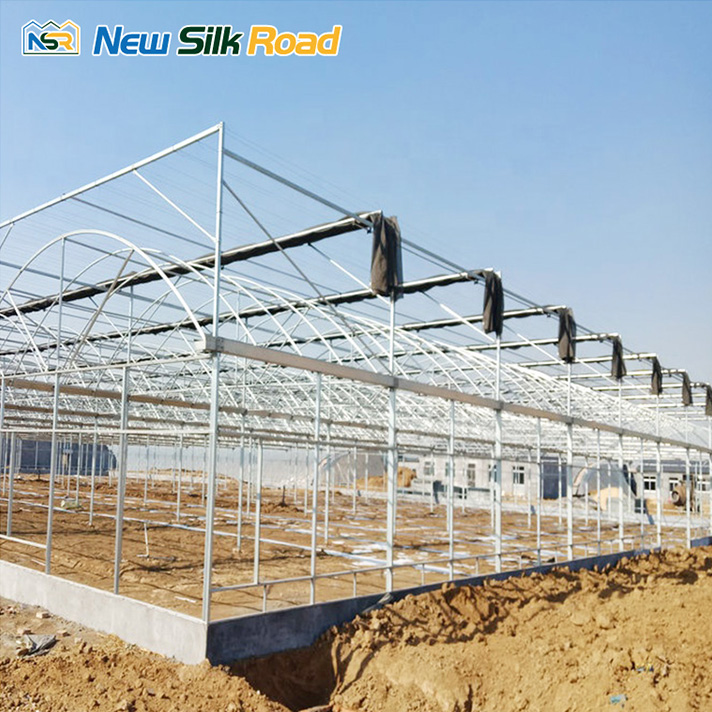

Basic Type
1. Suitable for the growth of plants that do not require high greenhouse height;
2. Suitable for use in areas where the wind is not strong;
3. The frame structure of the greenhouse and the steel used in the connecting parts are all hot-dip galvanized;
4. The frame structure design of the greenhouse complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Enhanced Type
1. Suitable for the growth of plants with high requirements for greenhouse height;
2. Suitable for use in areas with strong wind;
3. The frame structure of the greenhouse and the steel used in the connecting parts are all hot-dip galvanized;
4. The frame structure design of the greenhouse complies with the Chinese national standard "GB50017-2003 Steel Structure Design Code";
5. The steel used in the greenhouse complies with the Chinese national standard "GB700-88 Carbon Structural Steel Standard";
Greenhouse Ventilation System

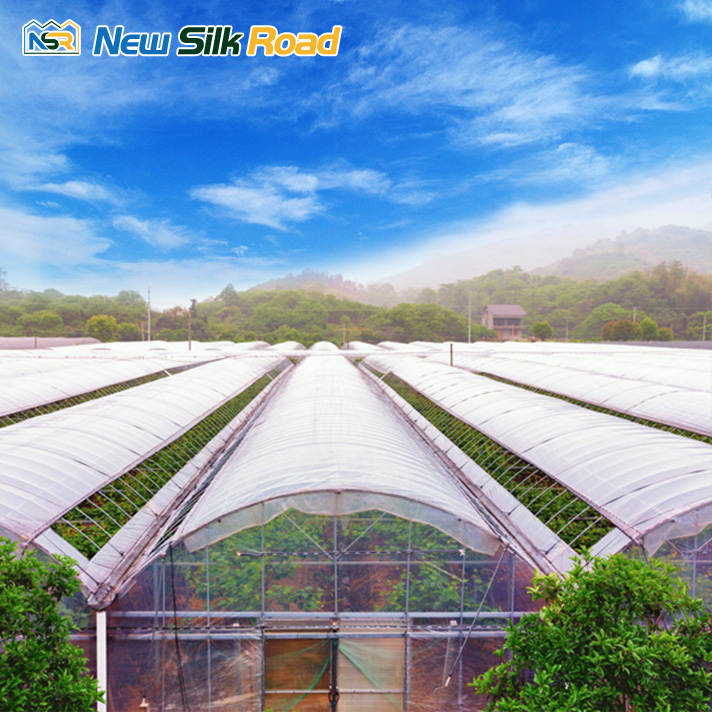

Top Ventilation System Of The Greenhouse
1. There are vents on both sides of each round arch at the top of the greenhouse.
2. The vent opening method is electric roll film switch.
3. Insect nets are installed in the vents.

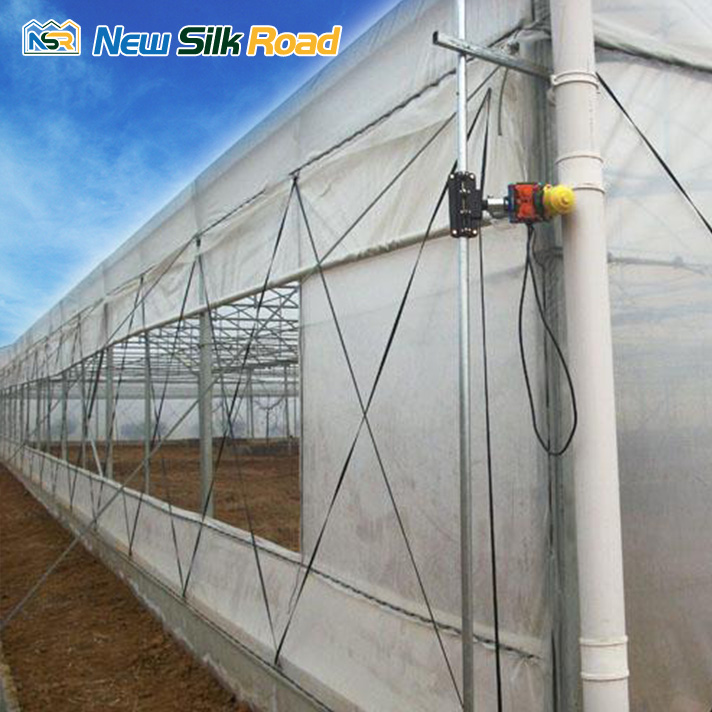

Side Ventilation System Of The Greenhouse
1. There are vents on both sides of the greenhouse.
2. The vent opening method is electric roll film switch.
3. Insect nets are installed in the vents.
Greenhouse shading system

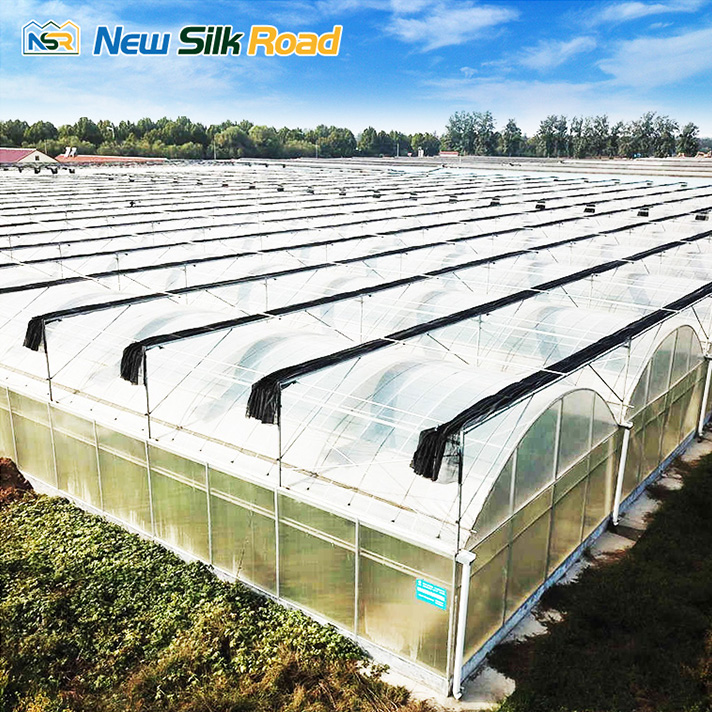

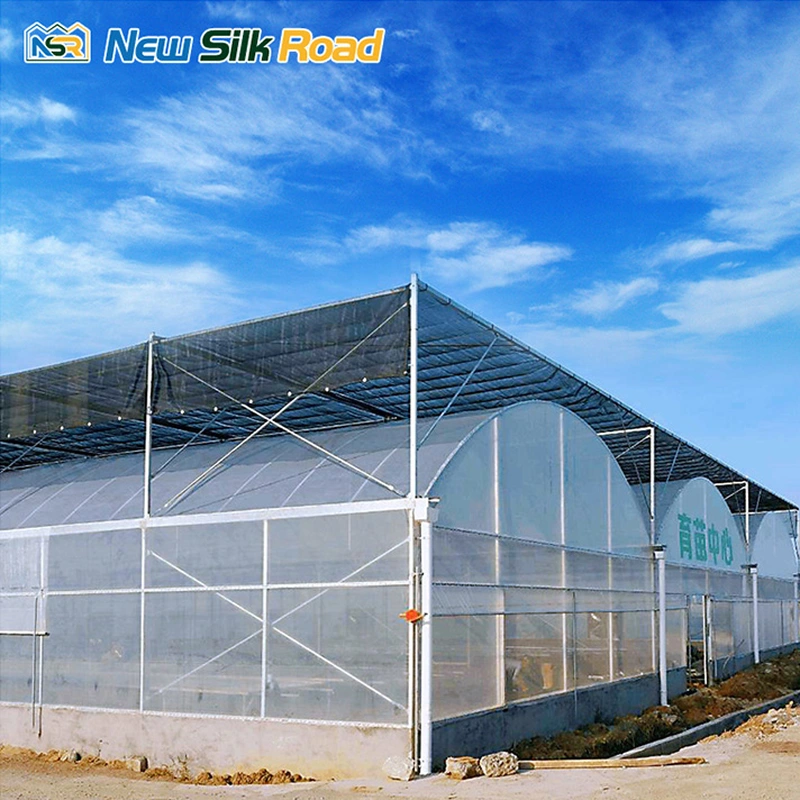

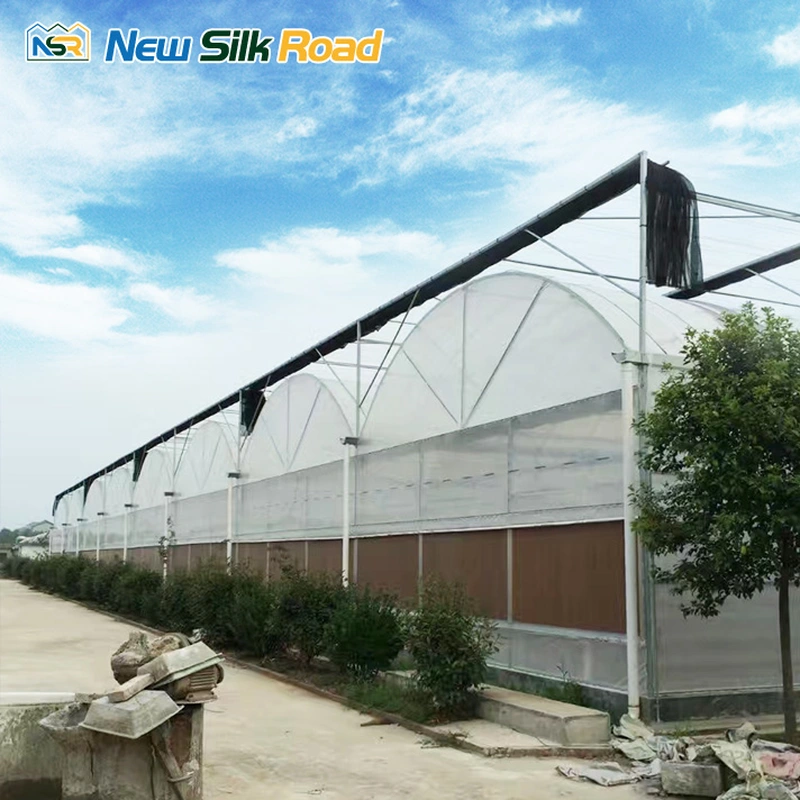

External Shading System
1. The external shading system is fixed on the top of the greenhouse frame, and the shading net is supported by columns and beams.
2. The framework of the sunshade system is the same as that of the greenhouse, using hot-dip galvanized steel pipes.
3. The outer sunshade net is made of black HDPE material and fixed with black polyester rope.

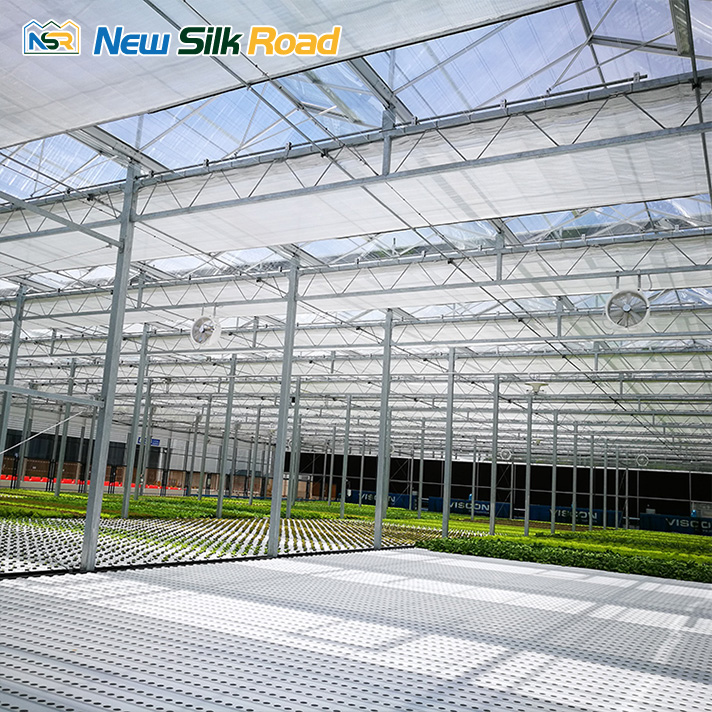

Internal Shading System
1. The internal shading system is fixed under the circular arch of the greenhouse.
2. The sunshade net of the internal sunshade system is made of aluminum foil + polyester yarn, and the white filter can reflect sunlight and reduce the heat in the greenhouse.
3. The sunshade net has a moisturizing and anti-condensation function, and the woven structure allows sufficient water vapor to pass through and prevents condensation on the lower part of the sunshade net.
